Aftermarket 4x4 hardware,drawn right the first time.

Rewsey Engineering designs universal CAD-engineered parts for 4x4s and automotive applications of all varieties — engine conversion and pedal brackets, mounts and custom hardware. Browse the catalogue, build a part-number list and submit it to the workshop for a quote.

Browse catalogueYour part list
Rewsey Engineering logo

3D CAD design

Scan-to-CAD, tolerance-checked models and full fabrication drawings.

Laser & fold

Production-ready DXF nesting, folded and jigged for repeatability.

Fit tested

Every part number proven on the vehicle before it hits the catalogue.

Product catalogue

Add part numbers to your list — no pricing shown, quotes returned by email.

Landcruiser 80 Series M57 Firewall AdapterTLC80-CP001In stock

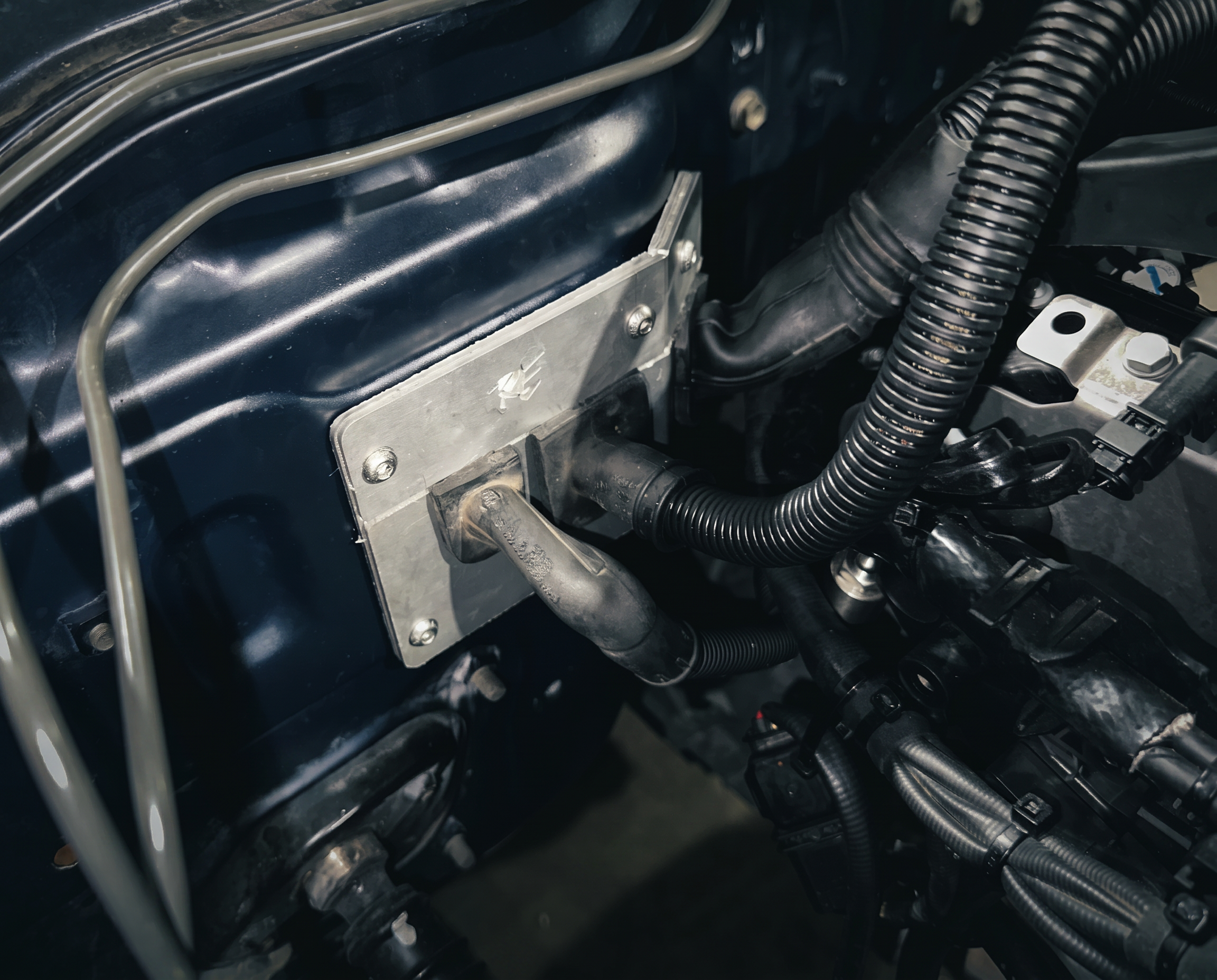

Landcruiser 80 Series M57 Firewall Adapter CAD view 2Landcruiser 80 Series M57 Firewall Adapter CAD view 3Landcruiser 80 Series M57 Firewall Adapter CAD view 4Landcruiser 80 Series M57 Firewall Adapter CAD view 5Landcruiser 80 Series M57 Firewall Adapter CAD view 6

Engine Conversion

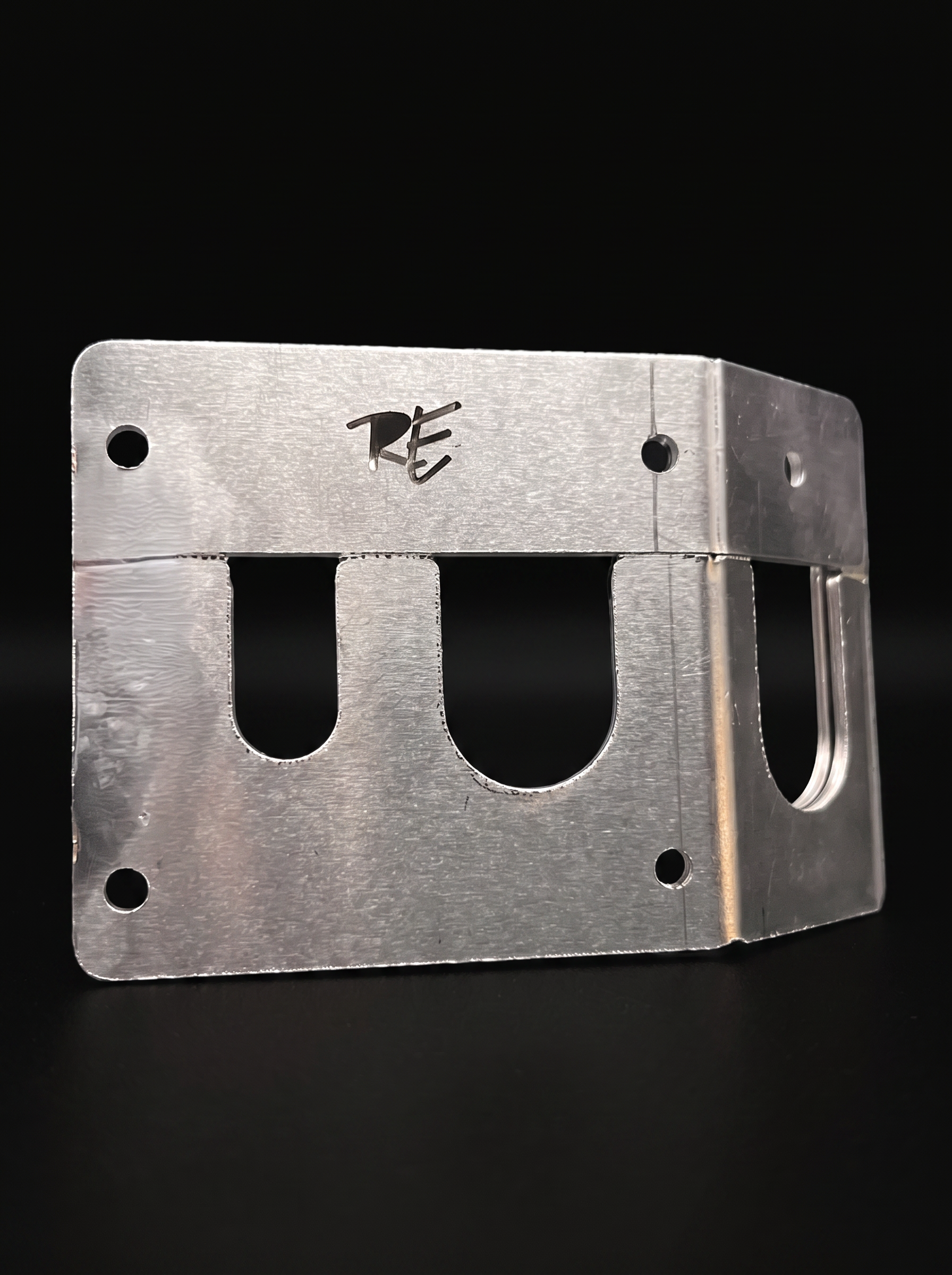

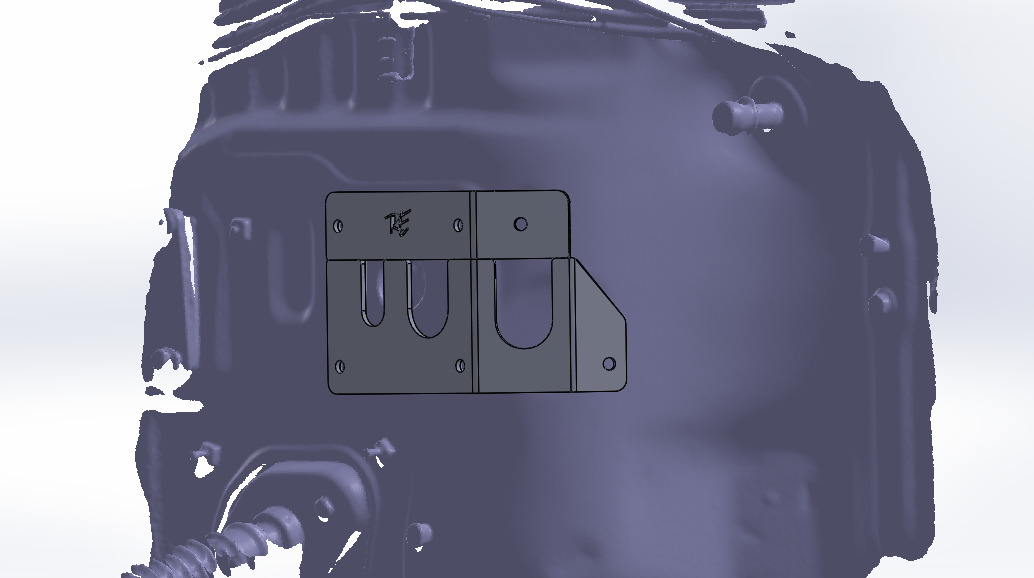

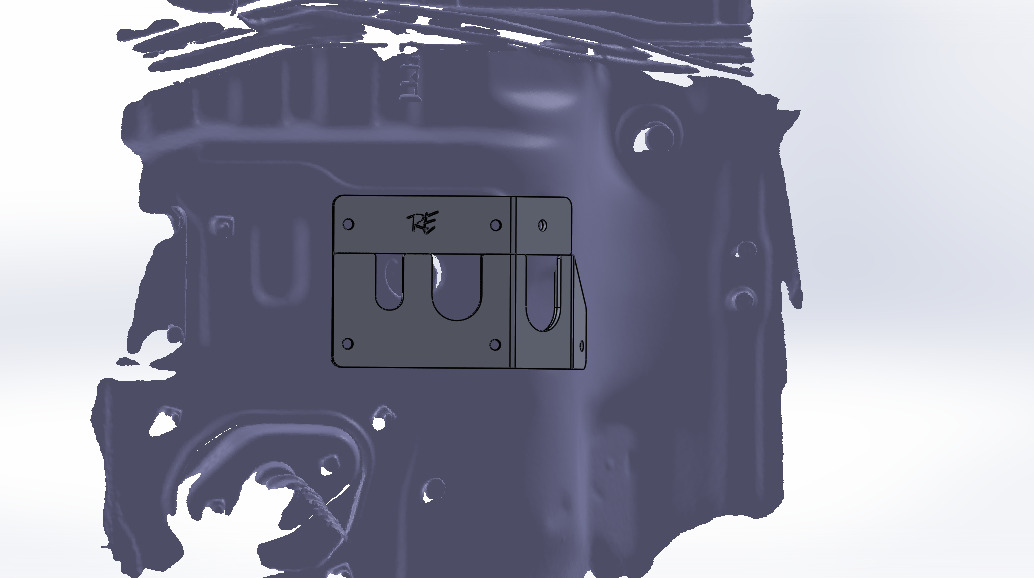

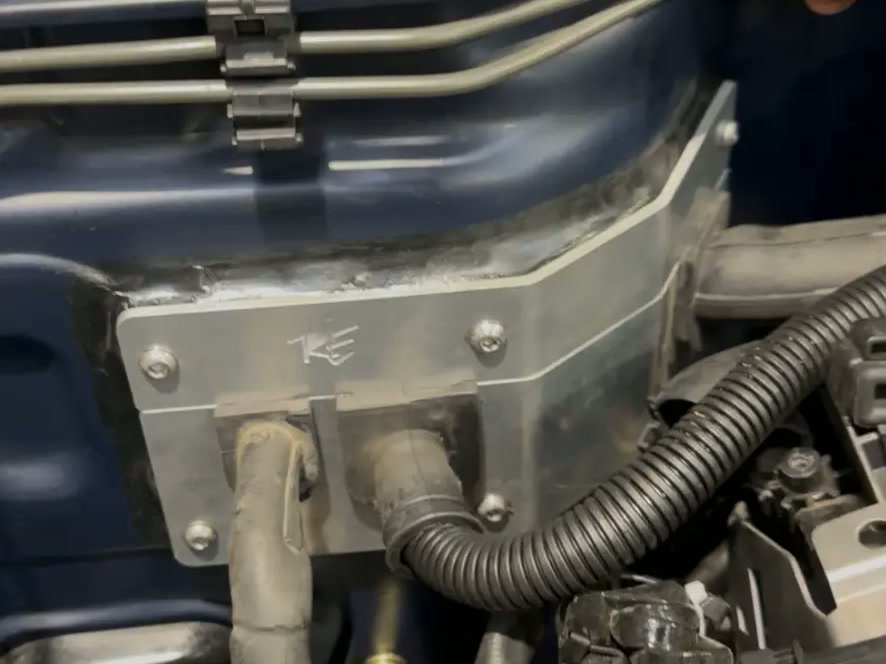

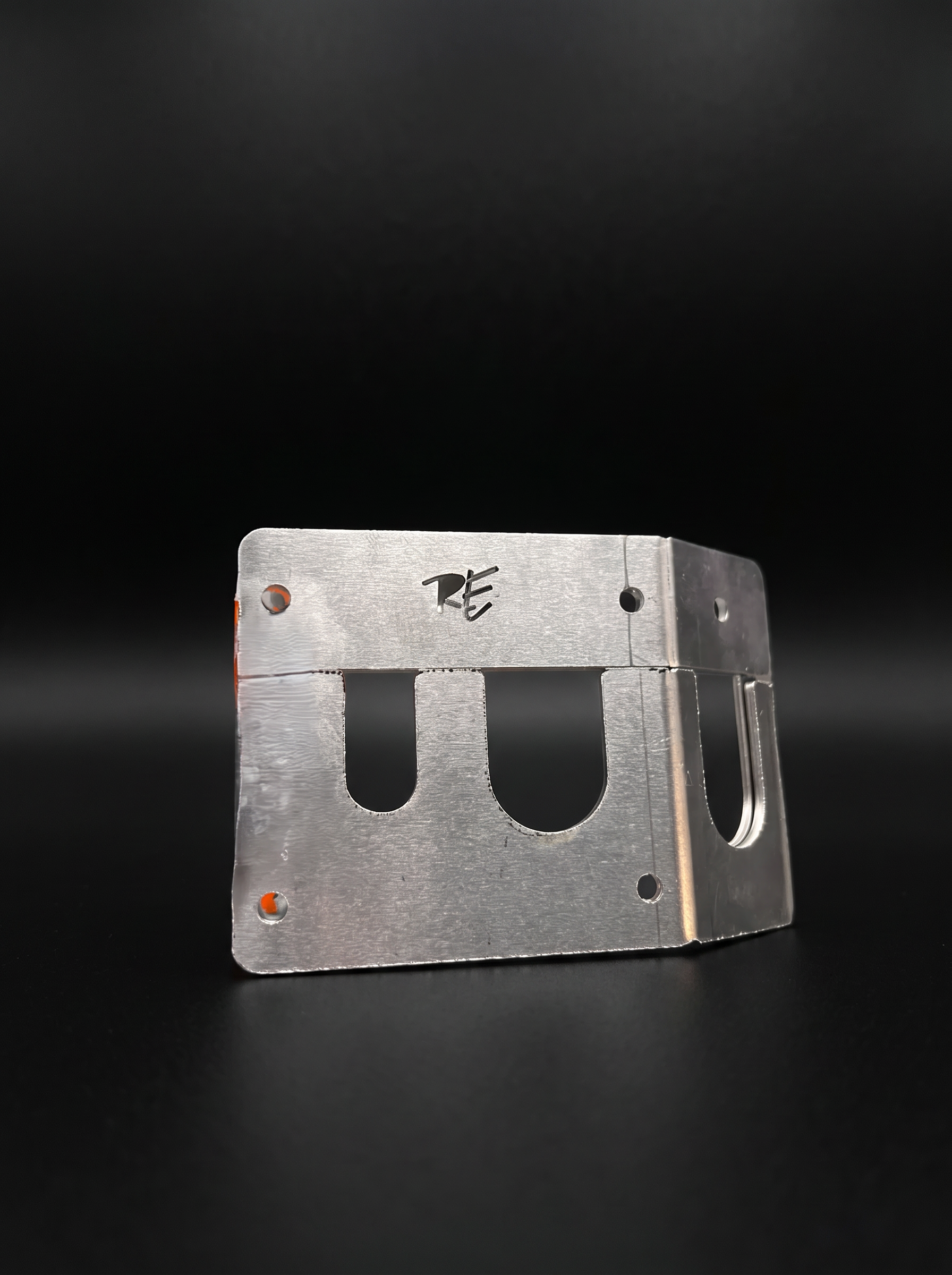

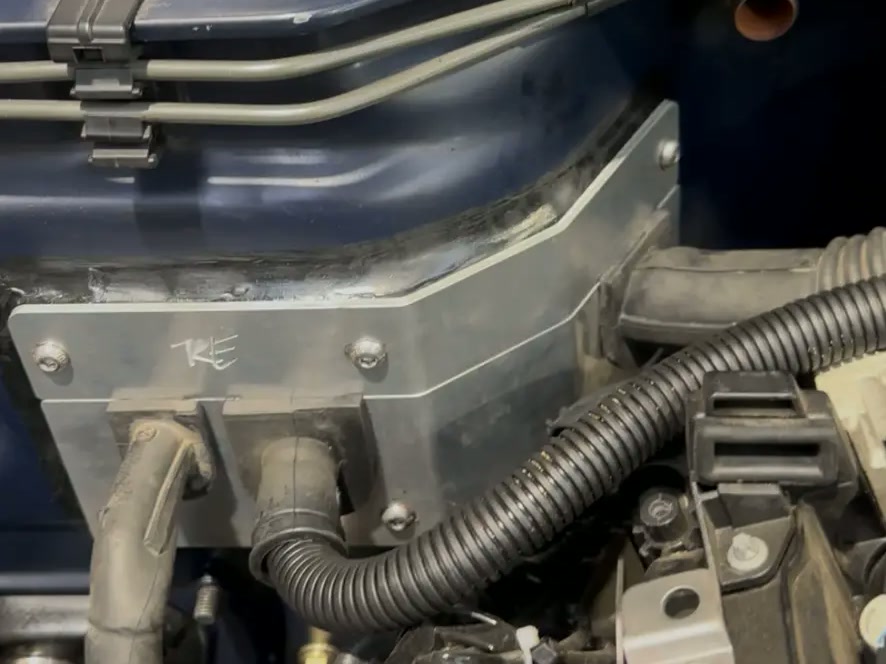

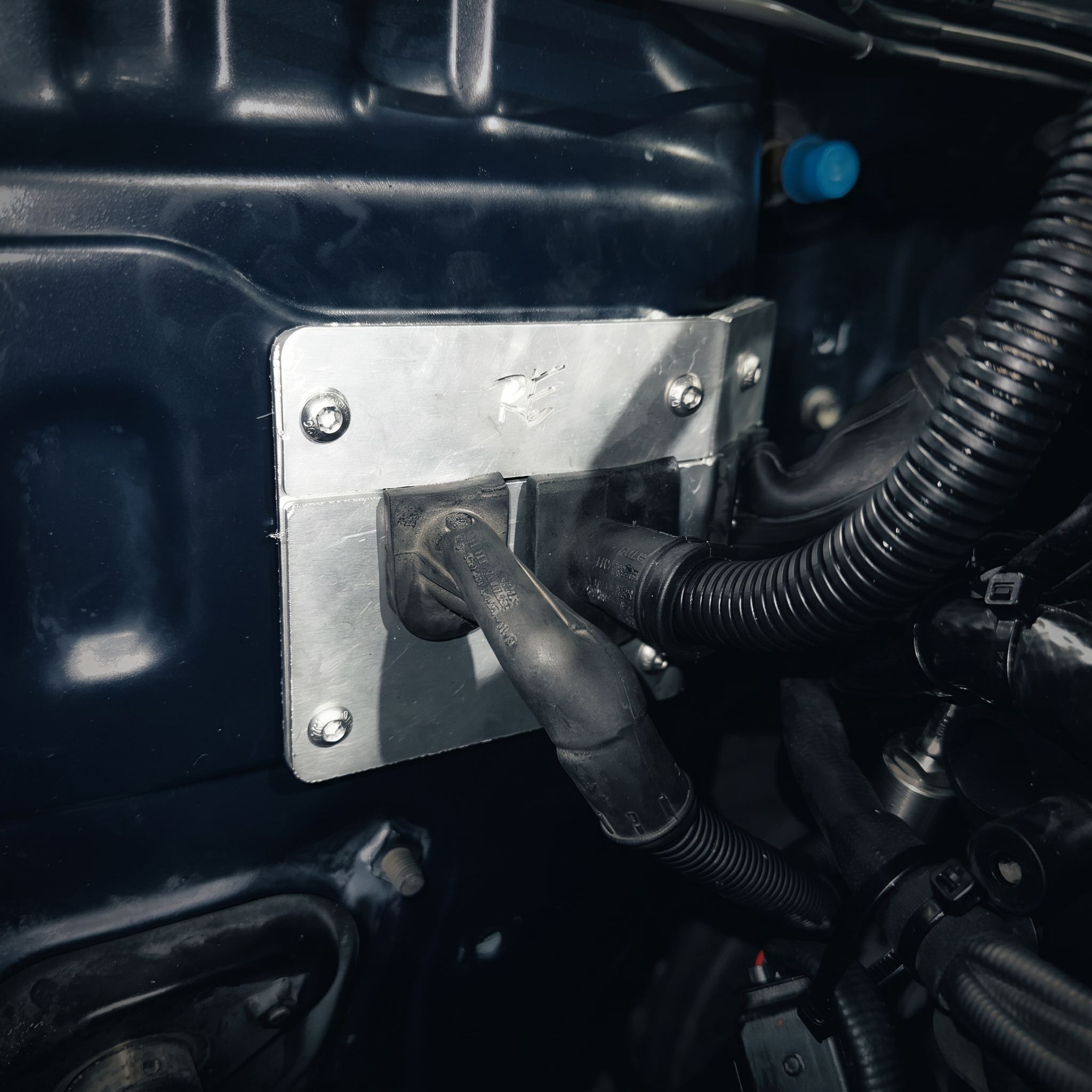

Landcruiser 80 Series M57 Firewall Adapter

A firewall adapter bracket made up of a three piece construction. This adapter allows you to utilise the OEM BMW wiring loom grommets to get an OEM seal on your engine swapped 80 Series. The position is where the factory loom on the Landcruiser 80 Series runs, making it ideal for those looking for a clean factory-looking conversion. The CAD designed three piece bracket allows you to feed the loom through the firewall and then slot into the cover plates, creating a water tight seal by clamping the BMW OEM grommet between the two aluminium faces. This part can be left as polished aluminium for a stand out look or painted for a stealth install.

Part numbers
TLC80-CP001 / TLC80BP001 / TLC80CP002
Fitment
Landcruiser 80 Series — BMW M57 engine conversion, OEM BMW wiring loom grommets
Material
CAD-designed three piece aluminium — polished or paint-ready
Landcruiser 80 Series to ZD30 Throttle BracketLC80ZD30In stock
Landcruiser 80 Series to ZD30 Throttle Bracket CAD view 2Landcruiser 80 Series to ZD30 Throttle Bracket CAD view 3Landcruiser 80 Series to ZD30 Throttle Bracket CAD view 4Landcruiser 80 Series to ZD30 Throttle Bracket CAD view 5

Engine Conversion

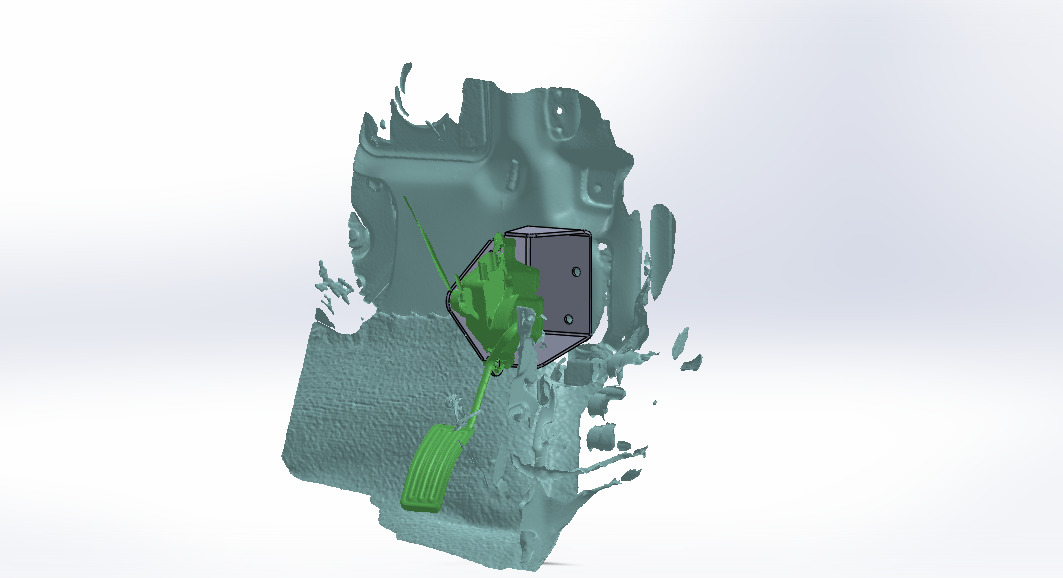

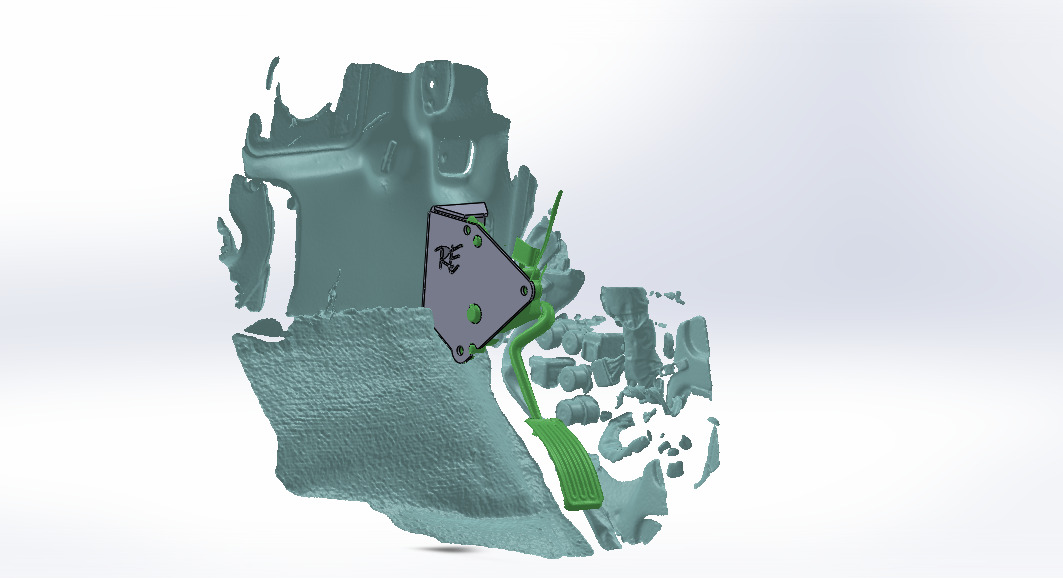

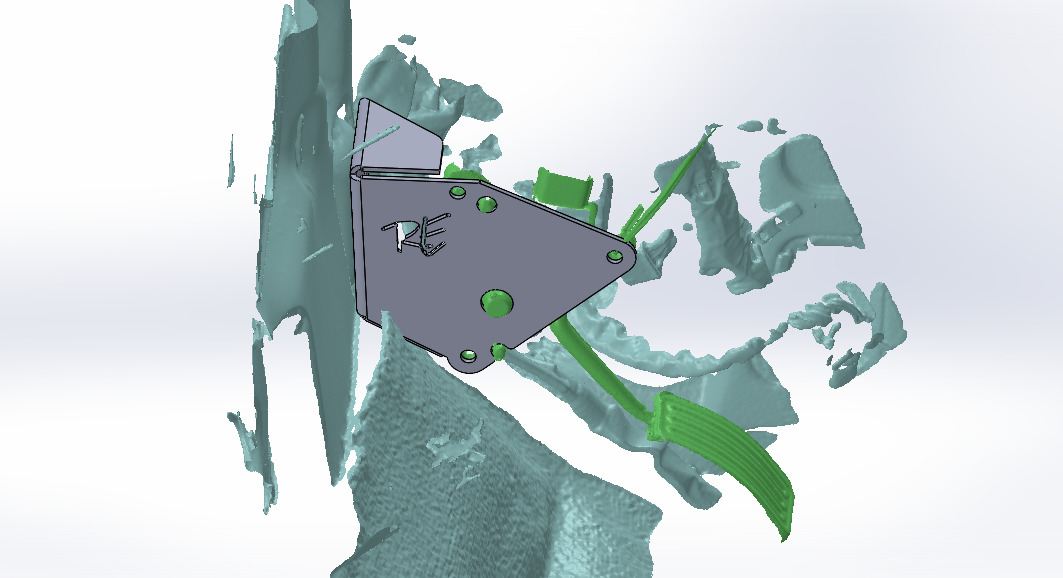

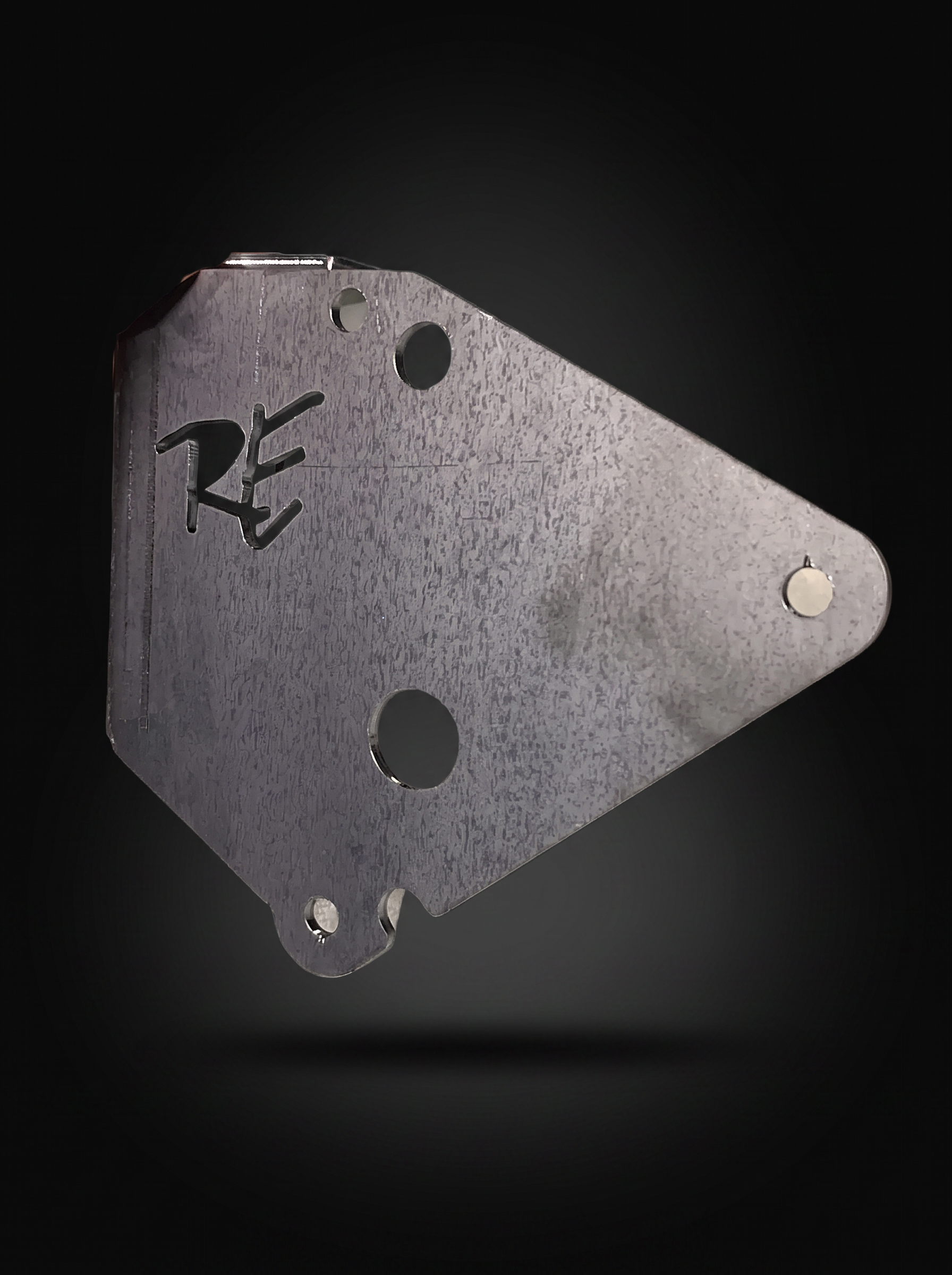

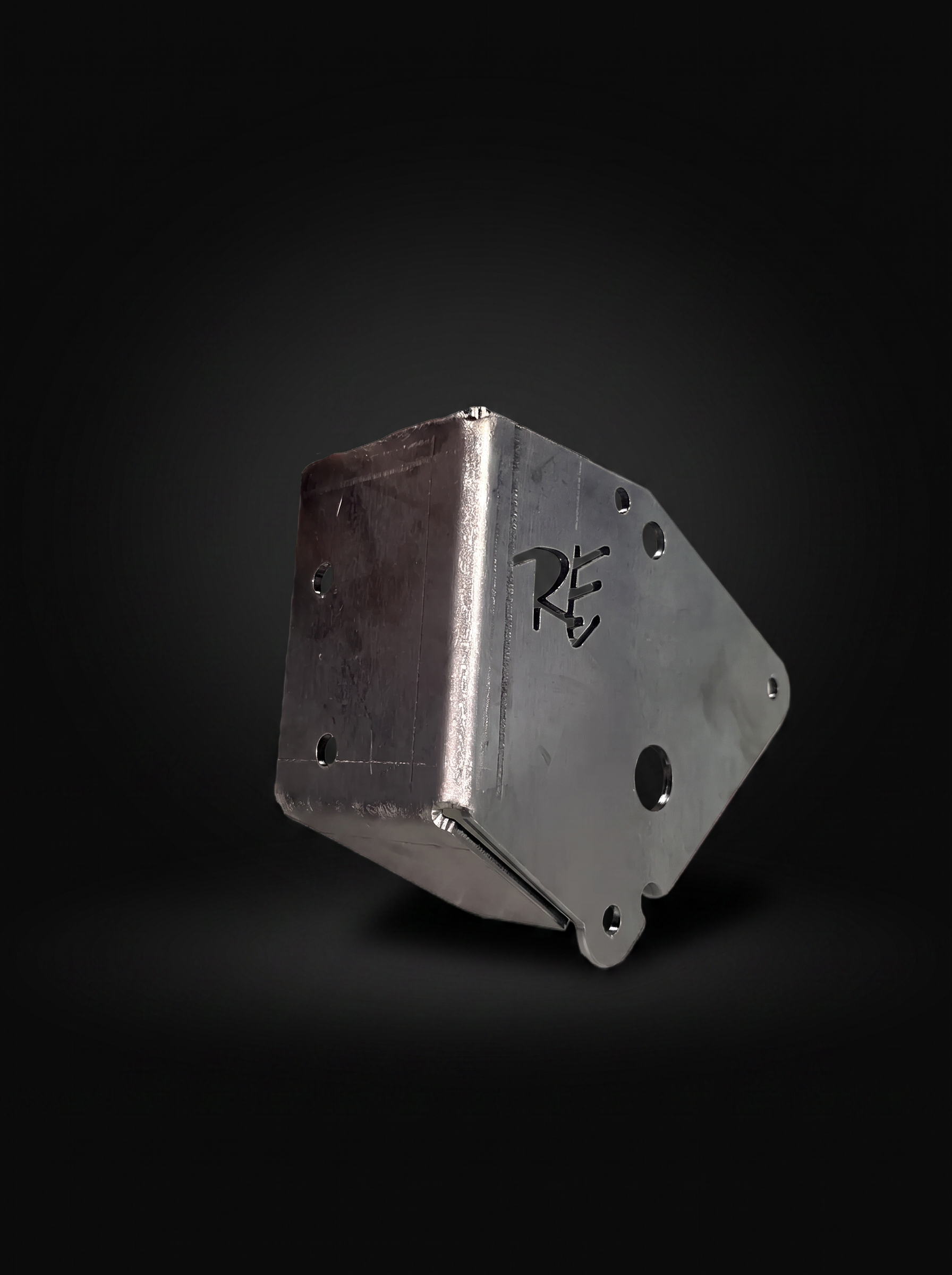

Landcruiser 80 Series to ZD30 Throttle Bracket

Throttle bracket which adapts a Nissan ZD30 throttle pedal to a Landcruiser 80 Series. The CAD design positions the ZD30 pedal in the identical position as the factory 80 Series pedal, giving it the OEM feel and precision required when you're driving. Can be used for multiple engine conversions, most commonly with M57 engine swaps.

Fitment
Landcruiser 80 Series — Nissan ZD30 pedal (also suits M57 swaps)
Material
Laser-cut and folded steel, black finish
Landcruiser 80 Series Fuel Filter & Power Steering Pump Reservoir BracketLC80M57FFBBIn stock
Landcruiser 80 Series Fuel Filter & Power Steering Pump Reservoir Bracket CAD view 2Landcruiser 80 Series Fuel Filter & Power Steering Pump Reservoir Bracket CAD view 3Landcruiser 80 Series Fuel Filter & Power Steering Pump Reservoir Bracket CAD view 4

Engine Conversion

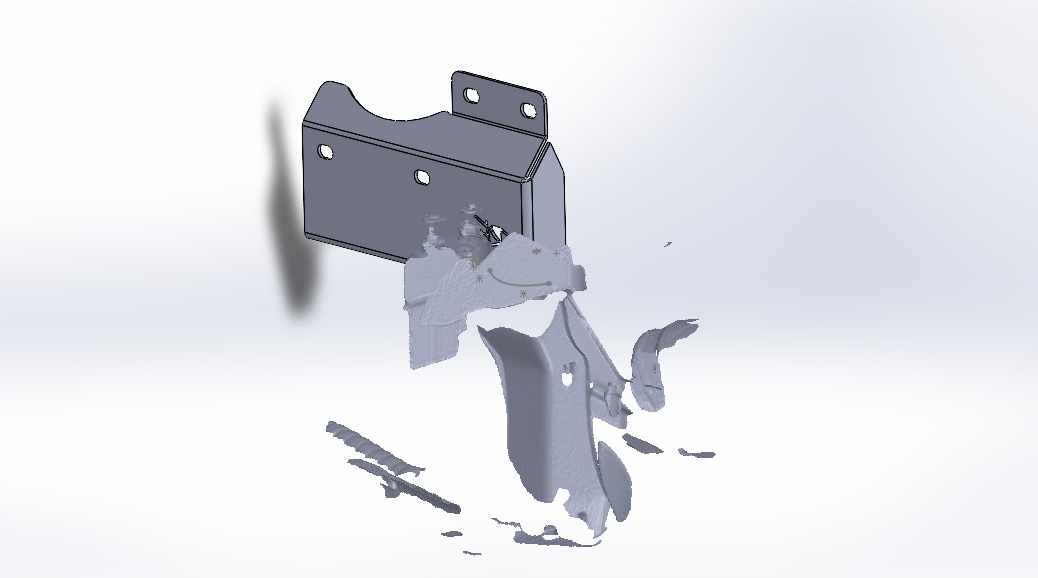

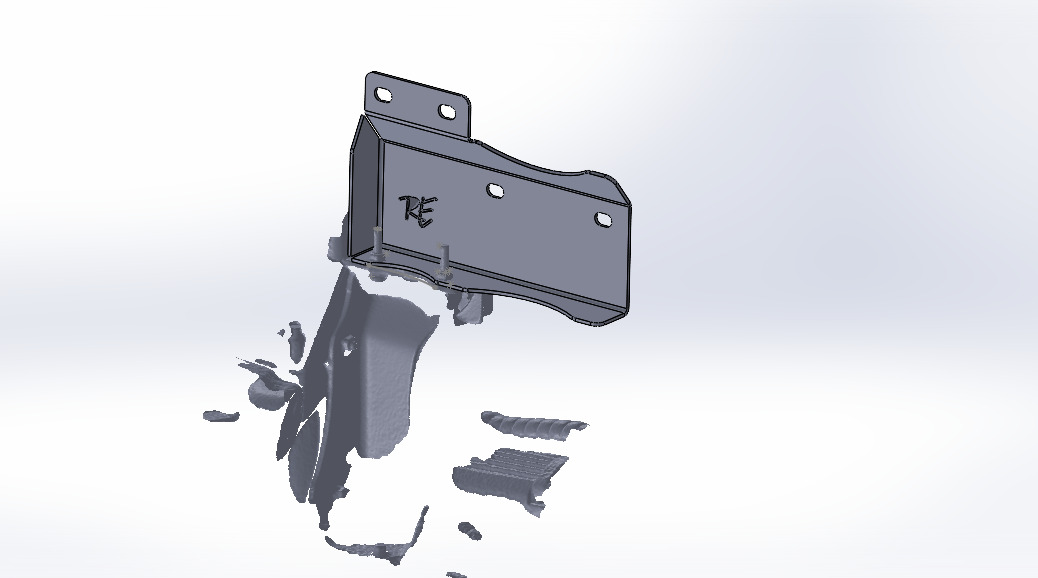

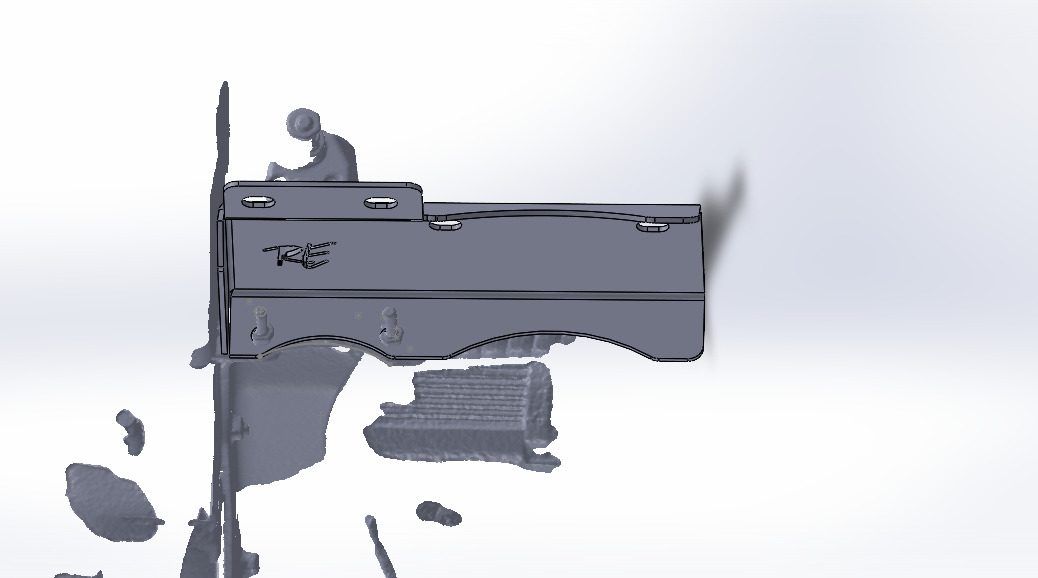

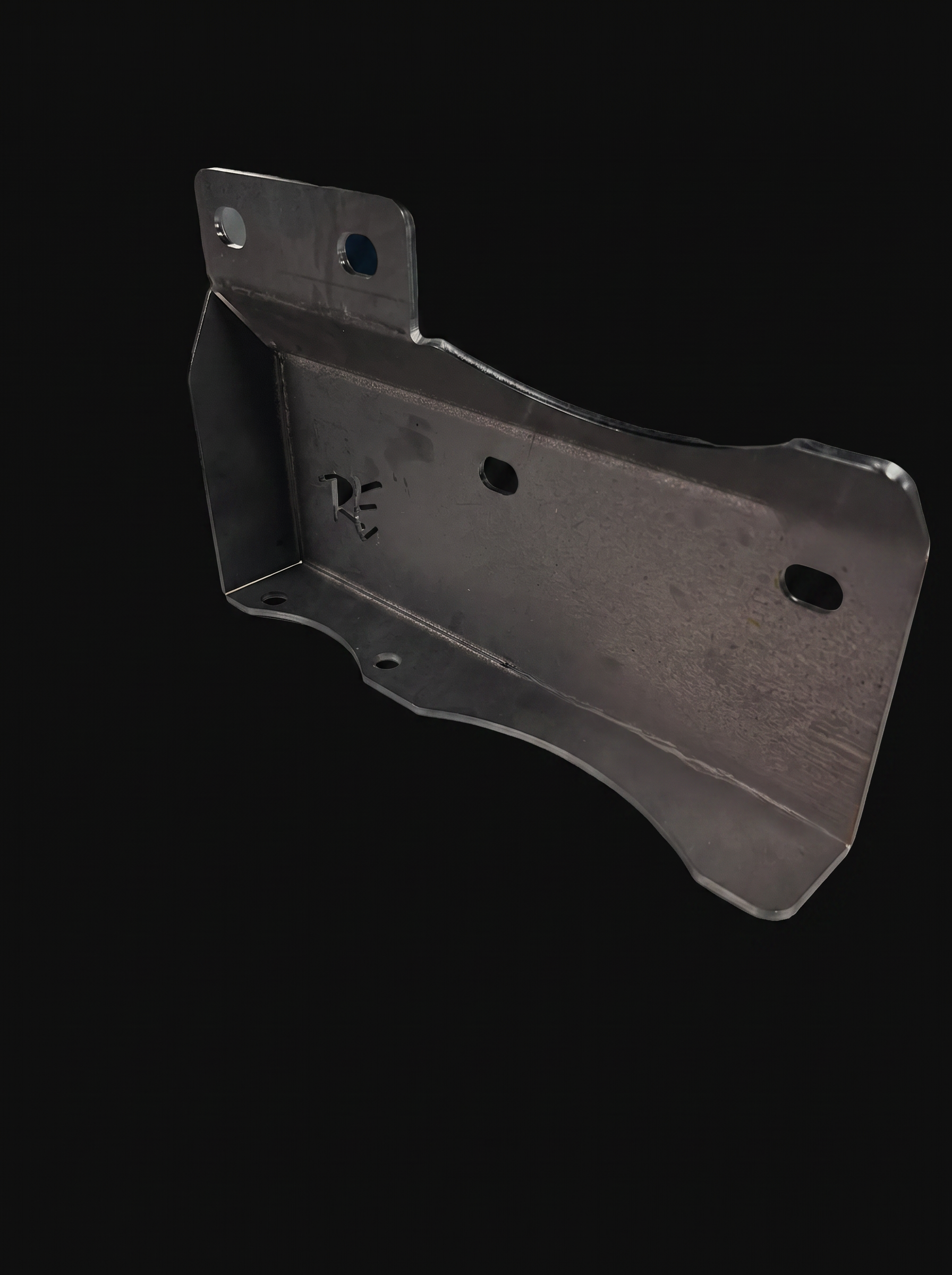

Landcruiser 80 Series Fuel Filter & Power Steering Pump Reservoir Bracket

Secondary fuel filter and primary power steering pump reservoir bracket, CAD designed to position the fuel filter and reservoir in a compatible spot for vehicles with an M57 engine in an 80 Series Landcruiser. This position allows clearance for the intercooler piping and a booster box if you're running 24v. This bracket can be used for multiple engine conversions that require clearance, but most commonly with M57 engine swaps.

Fitment
Landcruiser 80 Series — BMW M57 engine conversion (suits 24v booster box installs)
Material
Laser-cut and folded steel bracket

Your part list

Submit your selected part numbers for a quote and lead time. Your details are saved securely for manual follow-up.

Nothing selected yet — add parts from the catalogue above.

Send your order

Your part numbers and order details are securely recorded for Rewsey Engineering to review and invoice.

Built by fabricators, drawn by engineers

Rewsey Engineering works from 3D scan data and parametric CAD to design aftermarket hardware that bolts up without persuasion. Every design is released with production drawings, nesting files and a proven fitment record, so workshops and distributors can order by part number with confidence.

Custom one-off work and batch runs are available — send through your vehicle details and what you need built.

  • Design

    Reverse engineering, parametric CAD, FEA sanity checks

  • Manufacture

    Laser cutting, folding, jigged welding, powder coat

  • Supply

    Trade pricing, batch runs and dealer part-number catalogues

Got a part in mind?

If there is any product you would like to see designed and built, email your request in. We work from 3D scan data and real vehicle measurements to turn ideas into production-ready CAD parts.

  • Engine conversions

    Custom brackets, mounts and adapters for swapped drivetrains.

  • 4x4 accessories

    Recovery points, protection and touring hardware designed to fit.

  • CAD and Fabrications services

    Custom CAD design and small-run fabrication for workshops, dealers and distributors.

  • Reverse engineering

    Legacy or unobtainable parts redrawn from scan data.
